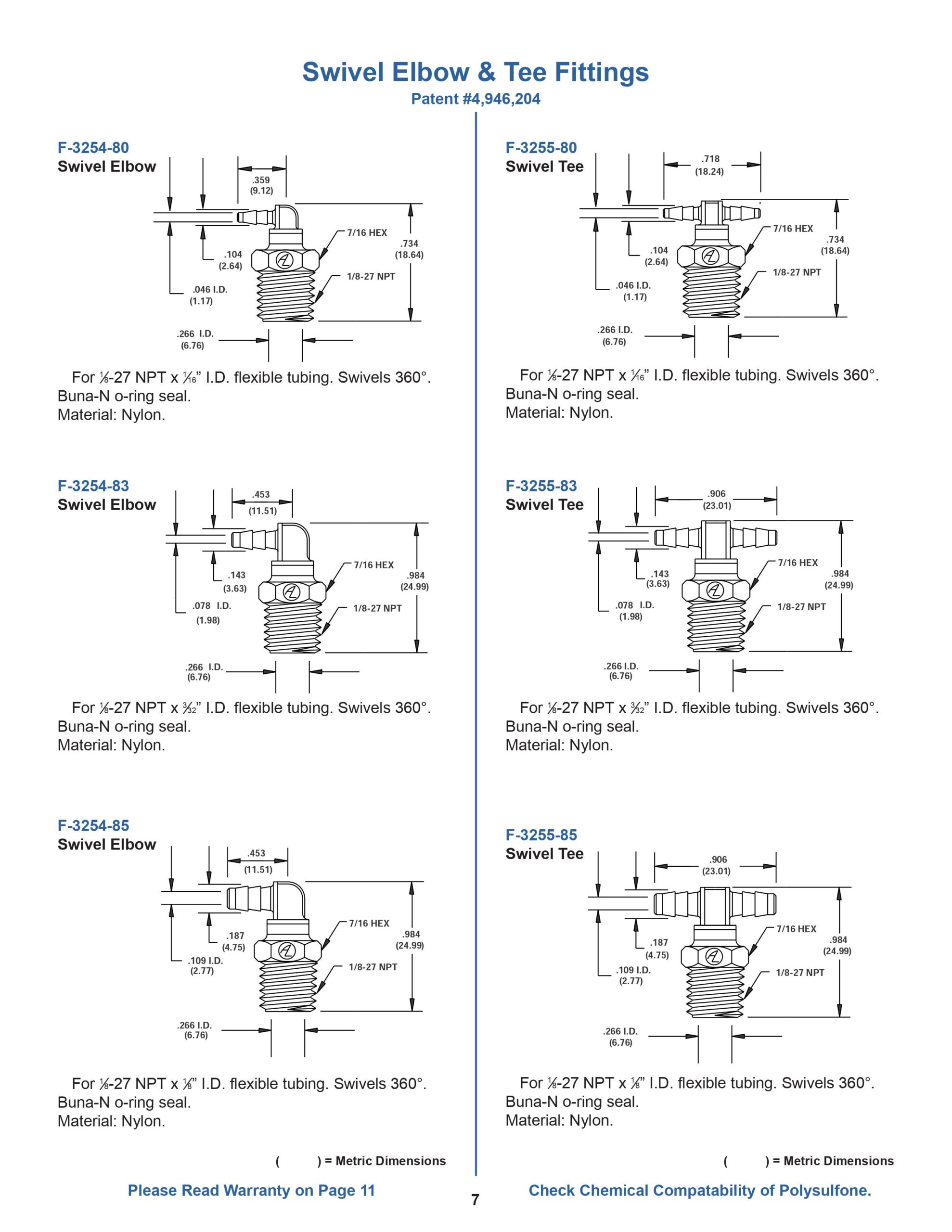

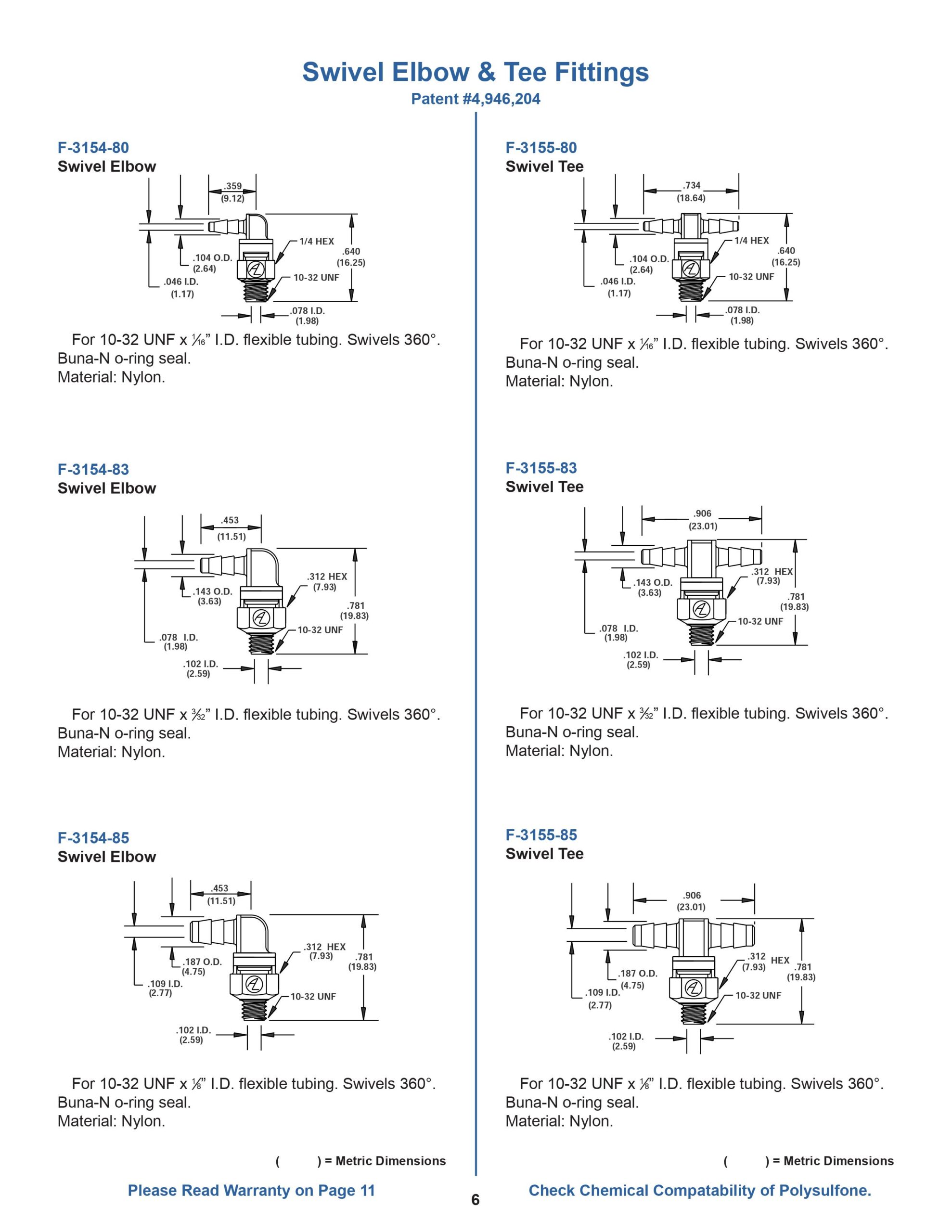

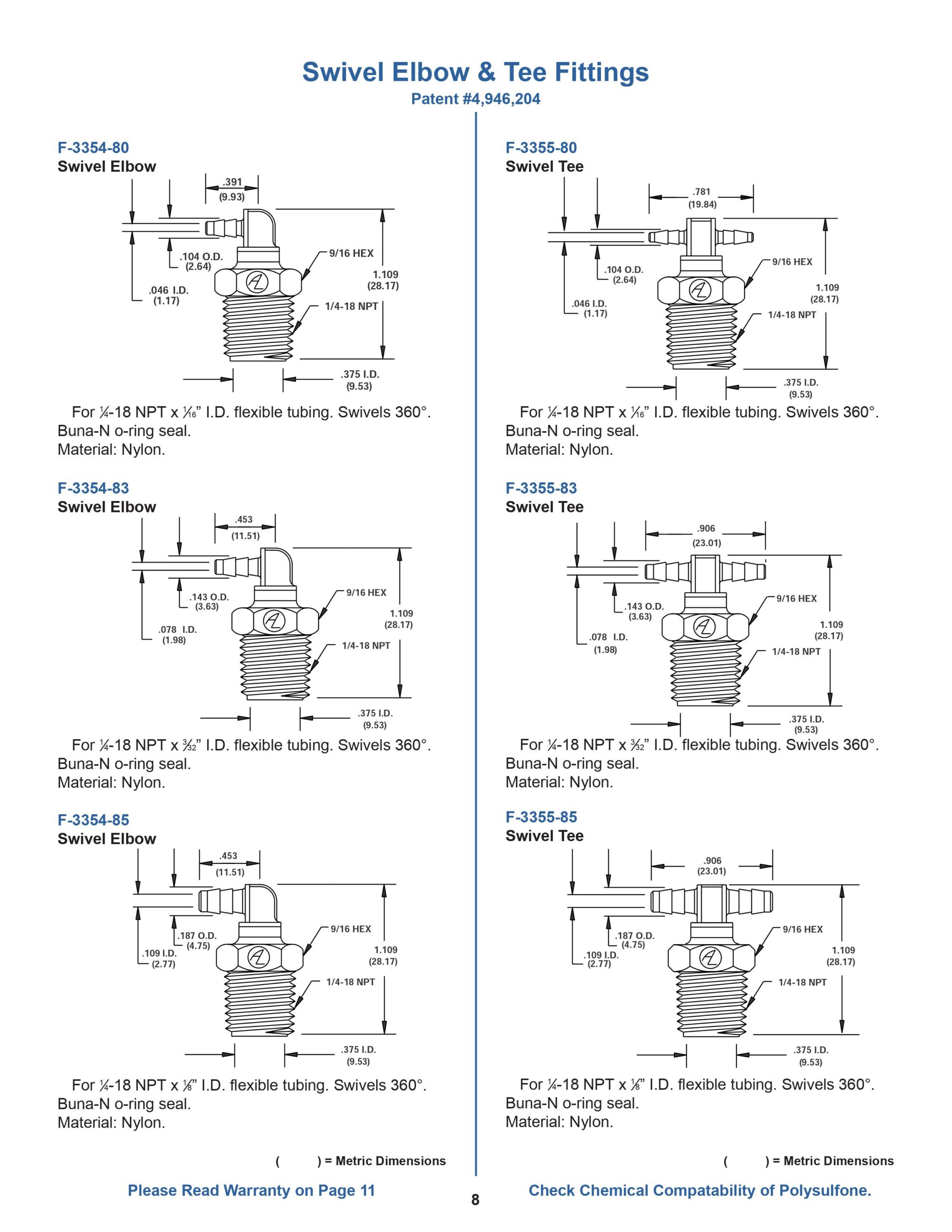

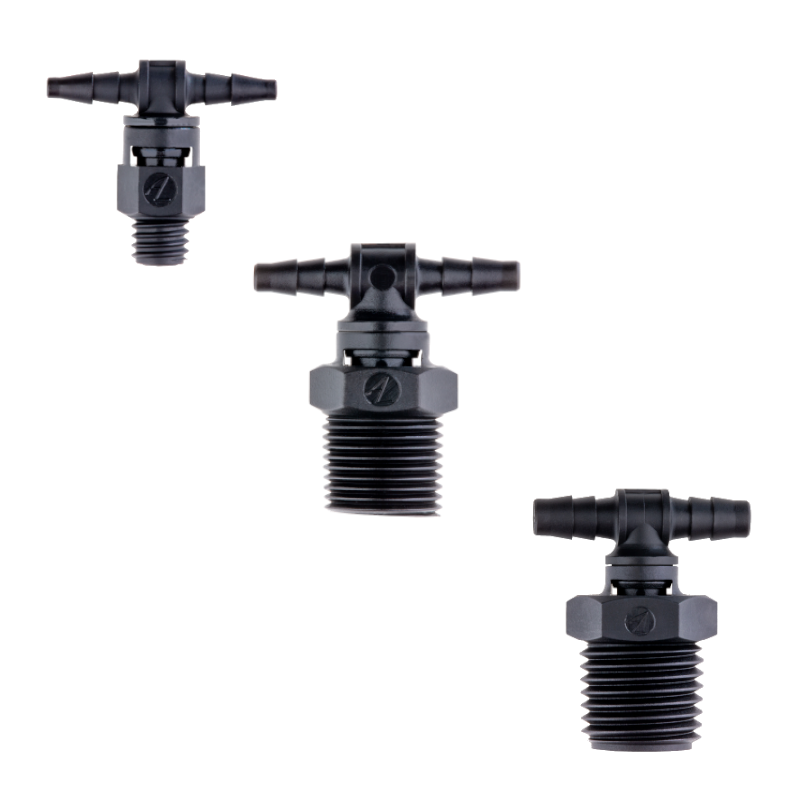

The unique design of the Swivel Fitting allows the barb to swivel 360° in the threaded base. The threads (1/4-18 NPT & 1/8-27 NPT) can be sealed with Teflon Tape or EverSeal 483. The 10-32 threads are self-sealing and do not require a gasket. Barbs are available for 1/16″, 3/32″, or 1/8″ I.D. flexible tubing. The snap type fitting is sealed with a Buna-N, Ethylene Propylene (EPDM), or Viton o’ring. The Swivel Fittings are precision molded of nylon.
- Barbed Tee Swivels 360 Degrees
- No Parting Line on First Barb
SPECIFICATIONS
Maximum Supply Pressure: 8.6 bar (125 PSI)
Operating Temperature: -45 to 82 °C (-50 to 180 °F)
MATERIAL
Housing and Barb: Nylon
O’ring: Buna-N, Ethylene Propylene (EPDM), or Viton
PORT CONNECTIONS
80: Barb Ø2.65 mm (0.104″) for Ø1.6 mm (1/16″) flexible I.D. tubing
83: Barb Ø3.63mm (0.143″) for Ø2.4mm (3/32″) flexible I.D. tubing
85: Barb Ø4.75 mm (0.187″) for Ø3.2 mm (1/8″) flexible I.D. tubing
MOUNTING
1/4-18 NPT Threads, 1/8-27 NPT Threads, 10-32 UNF Threads
