Universal Double Swivel Bulkhead Fittings

The Price is starting from CHF 5.90

The Universal Double Swivel Bulkhead Fittings provides the ability to utilize a swivel fitting on both ends of the bulkhead fitting.

No glue or solvents ar required to connect the bulkhead base to the swivel barb port using our simple, snap-together construction.

  • Assembly is a “Snap”

  • Swivel Barb rotates 360°

This product can currently only be ordered by e-mail or telephone.

Contact us

  • The unique design of the Modular Bulkhead Base allows the swivel fitting to rotate 360°, independent of the bulkhead base, and allows you to design the fitting specifically for your application. A Double Swivel Bulkhead Base provides the ability to utilize a swivel fitting on both ends of the bulkhead fitting.

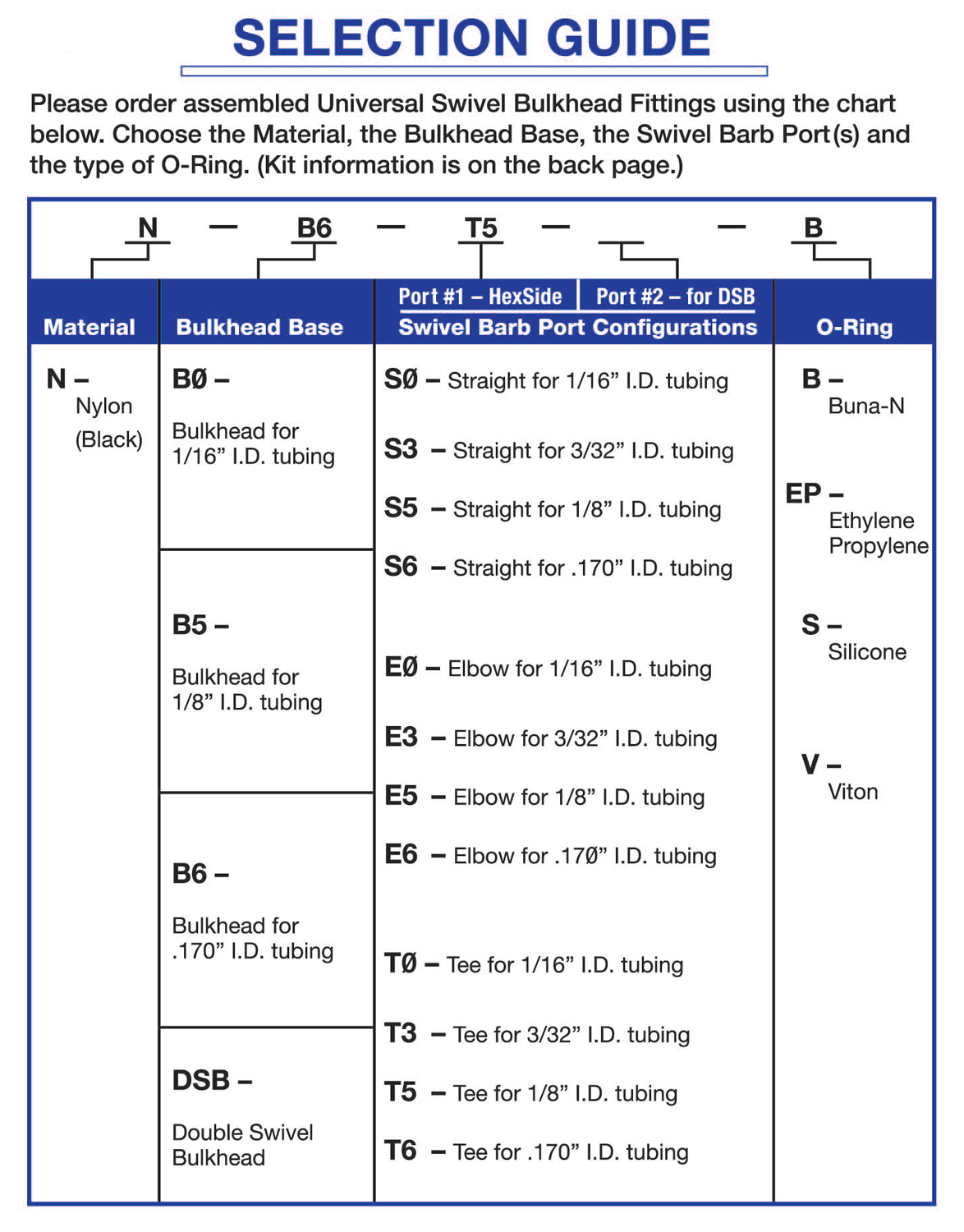

    SPECIFICATIONS

    Bulkhead Size: Ø1.6mm (1/16″), Ø3.2mm (1/8″) and Ø4.3mm (0.170″) I.D. Tubing
    Supply Pressure: 8.62 bar (125 PSI) max
    Mounting Hole Diameter: Ø6.35mm (1/4″) or Ø9.53mm (3/8″
    Swivel Barb Configurations: Straight, Elbow and Tee
    Operating Temperatures: 5 to 48 °C (40 to 120 °F)
    Thread Sizes: 3/8-24 UNF (nut is included)

    MATERIALS

    Housing: Nylon (black)
    O-ring: Buna-N, Ethylene Propylene, Silicone, and Viton

    PORT CONNECTIONS

    S80: Barb Ø2.65 mm (0.104″) for Ø1.6 mm (1/16″) flexible I.D. tubing
    S83: Barb Ø3.63mm (0.143″) for Ø2.4mm (3/32″) flexible I.D. tubing
    S85: Barb Ø4.75 mm (0.187″) for Ø3.2 mm (1/8″) flexible I.D. tubing
    S86: Barb Ø5.60 mm (0.220″) for Ø4.3 mm (0.170″) flexible I.D. tubing

    E80: Barb Ø2.65 mm (0.104″) for Ø1.6 mm (1/16″) flexible I.D. tubing
    E83: Barb Ø3.63mm (0.143″) for Ø2.4mm (3/32″) flexible I.D. tubing
    E85: Barb Ø4.75 mm (0.187″) for Ø3.2 mm (1/8″) flexible I.D. tubing
    E86: Barb Ø5.60 mm (0.220″) for Ø4.3 mm (0.170″) flexible I.D. tubing

    T80: Barb Ø2.65 mm (0.104″) for Ø1.6 mm (1/16″) flexible I.D. tubing
    T83: Barb Ø3.63mm (0.143″) for Ø2.4mm (3/32″) flexible I.D. tubing
    T85: Barb Ø4.75 mm (0.187″) for Ø3.2 mm (1/8″) flexible I.D. tubing
    T86: Barb Ø5.60 mm (0.220″) for Ø4.3 mm (0.170″) flexible I.D. tubing
