Polysulfone Union

Polysulfone Union

F-3120 Series
Low cost unions for 1/16” or 1/8” I.D. flexible tubing.

CHF 1.20 (excl. VAT)

Delivery time: 2 - 4 weeks
Contact us for shorter delivery times Art.-Nr.: N/A Categories: ,

The Unions are precision molded of polysulfone (PSU) which join 1/16″ I.D. or 1/8″ I.D. flexible tubing.

FEATURES

  • Low Cost

SPECIFICATIONS

Maximum Supply Pressure: Barbed Ports – 8.6 bar (125 PSI) Straight Ports – 1.72 bar (25 PSI)
Operating Temperature: 5 to 48°C (40 to 120 °F)

MATERIAL

Polysulfone (PSU)

PORT CONNECTIONS

Straight ports for Ø1.6 mm (1/16″) flexible I.D. tubing
B80: Barb Ø2.65 mm (0.104″) for Ø1.6 mm (1/16″) flexible I.D. tubing
B85: Barb Ø4.75 mm (0.187″) for Ø3.2 mm (1/8″) flexible I.D. tubing

MOUNTING

Inline

Fitting Configuration

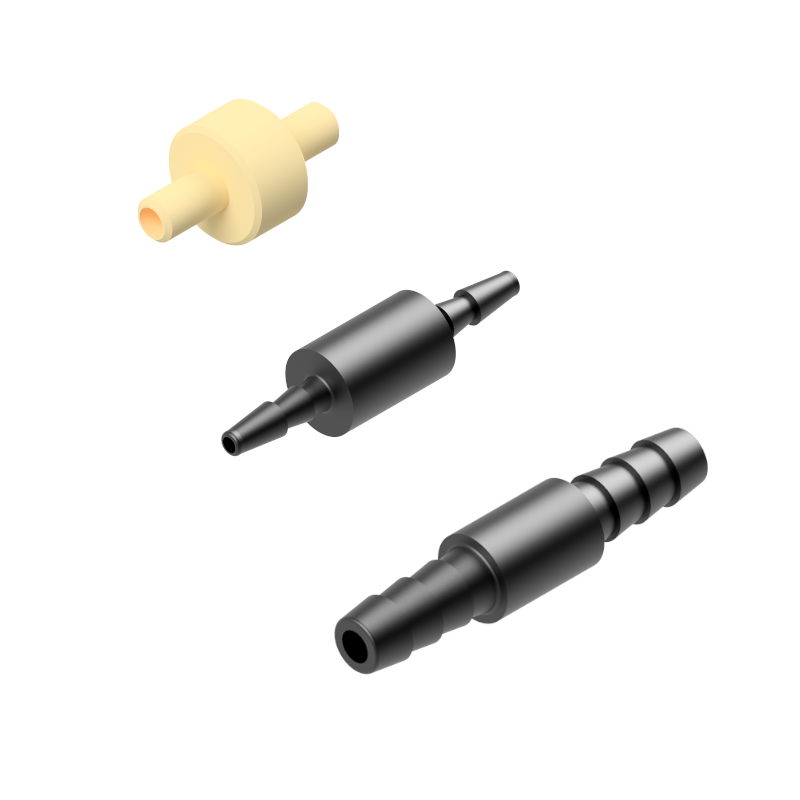

41 – Union Straight ports for Ø1.6 mm I.D. tubing, 42 – Union Barbs for Ø1.6 mm I.D. tubing, 43 – Union Barbs for Ø3.2 mm I.D. tubing

Drawings

3D-Files



Please contact us for other formats.
