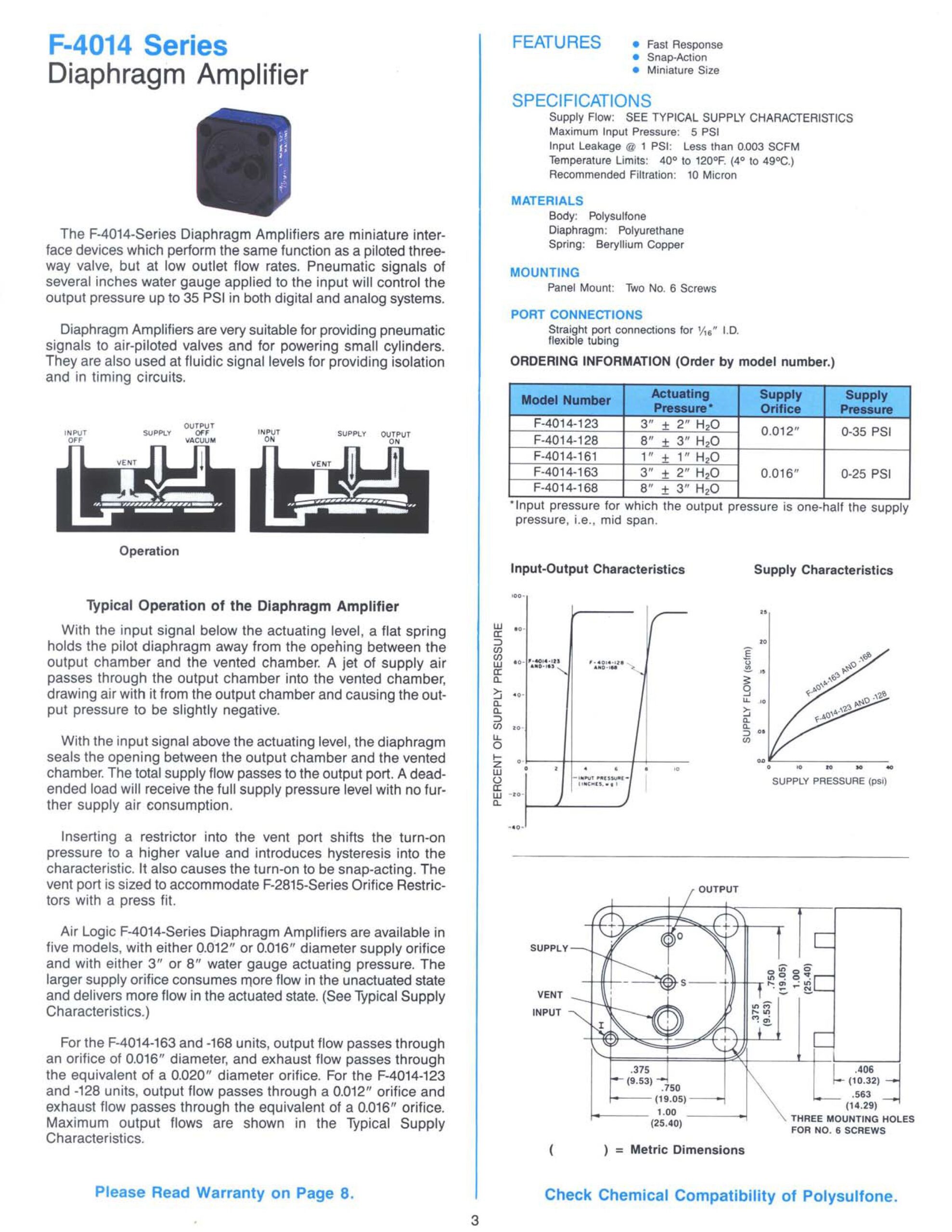

Pneumatic signals of several inches of water gauge applied to the input will control the output pressure up to 35 PSI in both digital and analog systems. Diaphragm Amplifiers are very suitable for providing pneumatic signals to air-piloted valves and for powering small cylinders. They are also used at fluidic signal levels for providing isolation and in timing circuits.
FEATURES
- Fast Response
- Snap-Action
- Miniature Size
SPECIFICATIONS
Input Leakage @ 1 PSI: Less than 0.003 SCFM
Maximum Input Pressure: 5 PSI
Maximum Supply Pressure:
F-4014-123 and F-4014-128: 35 PSI
F-4014-161, F-4014-163, and F-4014-168: 25 PSI
Operating Temperature: 40 degrees to 120 degrees F. (4 degrees to 49 degrees C.)
Recommended Filtration: 10 micron
Supply Flow: See Typical Supply Characteristics
Housing: Polysulfone
Diaphragm: Polyurethane
Spring: Beryllium Copper
PORT CONNECTIONS
Straight ports for 1/16″ I.D. tubing
MOUNTING
Panel Mount: Two No. 6 screws are provided
