Modular Manifold M-5000 Series

Price is starting from CHF 8.90

The Modular Manifold is designed for instrumentation and industrial applications.

  • Modular Dovetail Design

  • Miniature Size

  • Low Cost

The pressure regulators can currently not yet be ordered via the online store. However, we will gladly accept your order by email and are at your disposal for all your questions.

Place an order or ask a question
  • The Unique Modular Dovetail design of the Modular Manifold allows the manifold block to be used as an individual unit or assembled into a modular combination of pneumatic components.
    The Modular Manifold is available in two models:
    • The standard model and the filtered model.
    • The standard model is unfiltered

    The filtered model contains four stainless steel filters in the side ports:

    • The micron size is 380.
    • The top cover is unfiltered

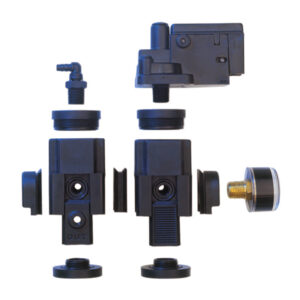

    The Manifold Block contains four individual dovetail slides and one top cover that will accept a various assortment of threaded ports or blanks.

    The Modular Dovetail Wall Mount Bracket is available for wall or cabinet mounting. The Pneumatic Accessories include the modular manifold block, the modular precision pressure, and preset regulators, pressure or vacuum switches, and pressure or vacuum gauges by combining the pneumatic accessories pneumatic circuits and systems can be assembled into one Modular Manifold System.


    SPECIFICATIONS

    Maximum Supply: 10.3 bar (150 PSI)
    Operating Temperature: 4 – 66 °C (40 – 150 °F)
    Recommended Filtration: 5 μm
    Capacitiy: 1 Cubic inch

    MATERIALS

    Housing: Glass filled Celcon
    O-Rings: Buna N, Silicone Nitrile
    Filter: Stainless Steel 304, Micron size 380

    PORT CONNECTIONS

    Threaded Dovetail: A Modular Dovetail Slide with 10-32 UNF, 18-27 NPT, 1/4-18 NPT thread sizes. The 1/8″ and 1/4″ gauge port is available.

    Union Dovetail: A Modular Dovetail Slide with a thru hole joining two units together with a common air supply.

    Connecting Dovetail: A Modular Connecting Dovetail Slide with no hole joining two units together with no common air supply.

    Blank Dovetail: A Blank Dovetail Slide is supplied when the port is not in use.

    Push-in Fitting Dovetail: Available for six different Tubing sizes (Outside Diameter)
    – 4 mm
    – 6 mm
    – 5/32” (3.97 mm)
    – 3/16″ (4.76 mm)
    – 1/4” (6.35 mm)
    – 5/16” (7.94 mm)

    Gauge Dovetail: A Modular Dovetail Slide is supplied with 1/8-27 NPT or 1/4-18 NPT thread sizes. The Dovetail Slide has the word GAUGE molded into the slide.

    Top Cover: The top cover is available in various combinations, 10-32 UNF, 1/8-27 NPT or 1/4-18 NPT thread sizes. The 1/4″ and 1/8″ contain a brass hoop insert. During assembly, fittings should be finger tight plus one turn. A Blank Top Cover is available when porting is not desired.

    MOUNTING

    Base Mounting: 2.9 mm diameter mounting holes, use M2.5 mounting screws.

    Wall Mount: Modular Dovetail wall mount with 4.37 mm holes

  • Order by model number for output range. Specify accessory letters or numbers for the dovetail ports and adjustment style. The regulator is supplied with an INPUT PORT, an OUTPUT PORT, and two BLANK PORTS as standard. Two accessory ports may be ordered. When choosing the port selection the INPUT PORT is the starting point. The remaining ports are then selected counterclockwise.
