The switches are adjustable 1 to 28″ Hg with a maximum signal pressure of 29.9″ Hg. The switches have three electrical terminals: Normally Open, Normally Closed and Common.
Four mounting styles are available: Flush Mount, Manifold Mount, Panel Mount, and Pipe Thread Mount. The Flush Mount has 0.125″ diameter mounting holes for mounting on a flat surface. The Manifold Mount is designed to mount directly on pneumatic circuit boards or manifold subplates; a Buna-N o-ring is supplied. The Panel Mount has a unique thread that goes from 1/8-27 tapered pipe thread to 1/8-27 straight pipe thread; a mounting nut is supplied. The Pipe Thread Mount has 1/8-27 tapered pipe threads.
The switches are provided with a B80 Barb, 10-32 UNF Barbed Fitting, for 1/16″ I.D.tubing unless otherwise requested.
FEATURES
- Low Cost
- Subminiature Size
- Low Differential
- Snap-Action Switch
- Fast Response
SPECIFICATIONS
Electrical Specifications
Switch Action: Single pole, double throwd
Electrical Switch: UL and CSA Approved, (UL# E12252 N) (CSA File# LR 42370)
Electrical Connections: 0.187″ quick-connect terminal
Mechanical Specifications
Operating Speed: Activate or release in 25 milliseconds
Signal Pressure: 29.9″ Hg maximum
Adjustment Range: 1 to 28″ Hg
Temperature Limits: 5 to 48 °C (40 to 120 °F)
MATERIALS
Housing: Polysulfone
Diaphragm: Polyurethane
Spring: Stainless Steel or Music Wire
PORT CONNECTIONS
10-32 female threads, furnished with barbed fitting:
B80: 10-32 UNF Barbed Fitting for Ø1.6 mm (1/16″) I.D. tubing
B85: 10-32 UNF Barbed Fitting for Ø3.2 mm (1/8″) I.D. tubing
B86: 10-32 UNF Barbed Fitting for Ø4.3 mm (0.170″) I.D. tubing

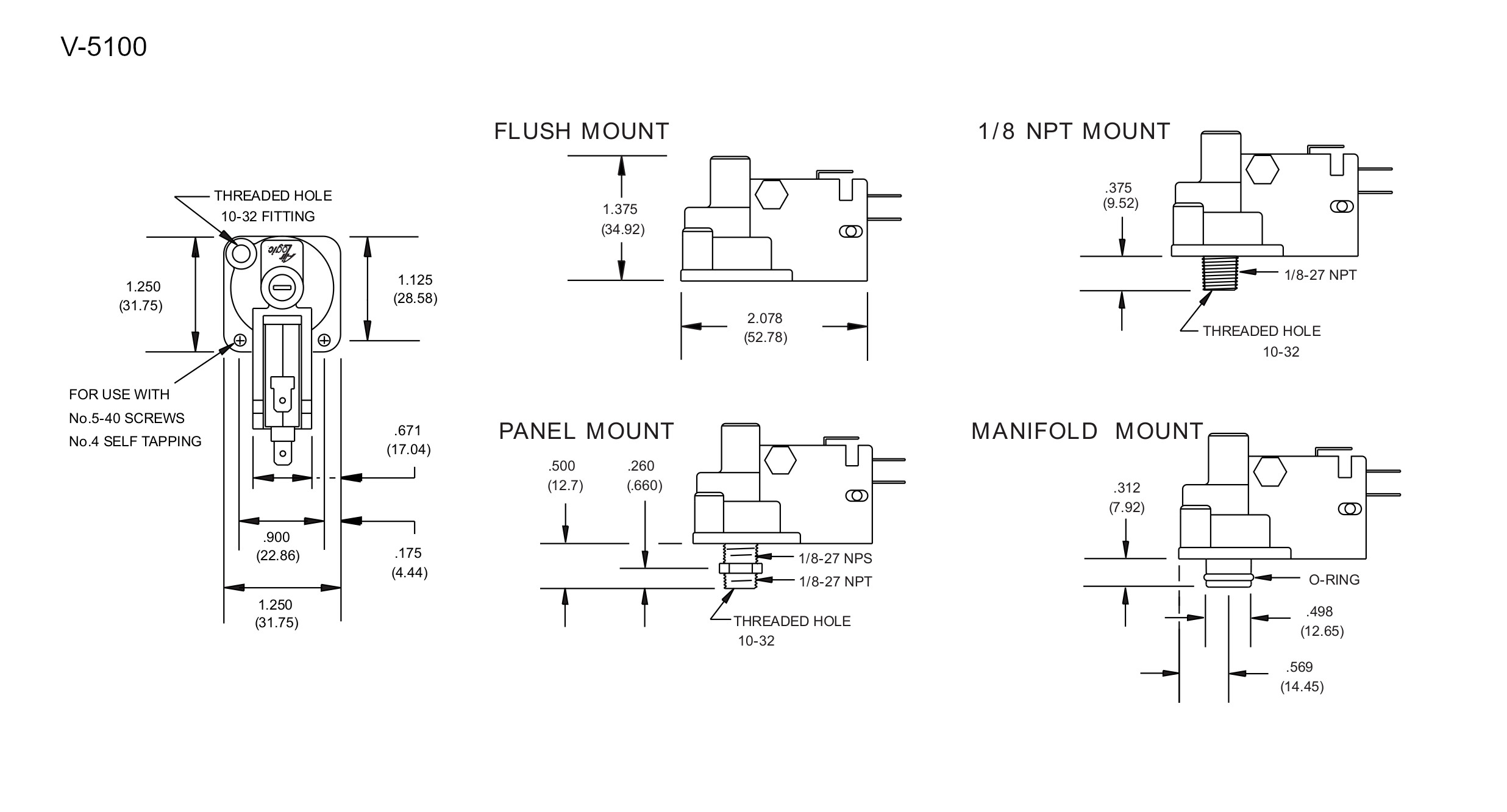

MOUNTING
Flush Mount: 0.125″ diameter mounting hole; use No. 4 self-tapping or 5-40 screw
Manifold Mount: Two 0.125″ diameter mounting holes; use No. 4 self-tapping or 5-40 screw (A Buna-N o-ring is supplied)
Panel Mount: External 1/8-27 NPT to 1/8-27 NPS, internal threads are 10-32 UNF. Ø11.11 mm (7/16″) diameter mounting hole is required. (A mounting nut is supplied)
Pipe Thread Mount: 1/8-27 male tapered tapered pipe threads with 10-32 UNF internal threads
