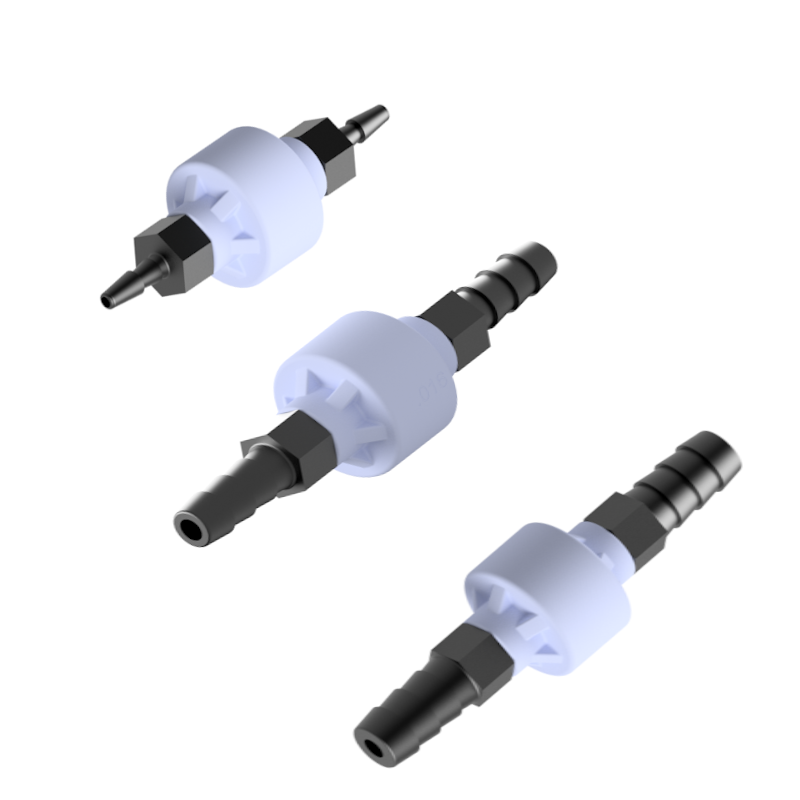

Preset Flow Control with Barbs (B80/B85/B86)

Preset Flow Control with Barbs (B80/B85/B86)

The Preset Flow Control maintains a constant flow in one direction and full flow in the opposite direction.

CHF 13.05 (excl. VAT)

Delivery time: 2 - 4 weeks
Contact us for shorter delivery times Art.-Nr.: N/A Categories: ,

The operation of the Flow Control is based on the movement of a small disc. The disc shifts within the housing as the pressure differential changes from forward to reverse. An orifice restrictor is encased in the center of the disc. A flat surface on one side of the disc seals and permits flow through the orifice.

The amount of flow permitted in the reverse direction, which is the sealing side, is determined by the orifice size. The amount of flow permitted in the forward direction is full flow.

FEATURES

  • Precision Molded Orifice
  • Miniature Size
  • Minimum Cracking Pressure
  • Low Cost

SPECIFICATIONS

Maximum Supply: 5.17 bar (75 PSI)
Operating Temperature: 5° to 48 °C (40° to 120 °F )
Recommended Filtration: 5 micron
Cracking Pressure: Less than 0.025 bar (10″ H2O)

MATERIALS

Orifice: Polysulfone
Housing: Gray Polysulfone
Disc: Silicone

PORT CONNECTIONS

B80: Barb Ø2.65 mm (0.104″) for Ø1.6 mm (1/16″) I.D. tubing
B85: Barb Ø4.75 mm (0.187″) for Ø3.2 mm (1/8″) I.D. tubing
B86: Barb Ø5.60 mm (0.220″) for Ø4.3 mm (0.170″) I.D. tubing

MOUNTING

Inline

Orifice Diameter

Ø 0.10 mm (0.004”) – Purple, Ø 0.13mm (0.005”) – Lime Green, Ø 0.15mm (0.006”) – Red, Ø 0.18mm (0.007'') – Aqua Green, Ø 0.25mm (0.010'') – Yellow, Ø 0.30mm (0.012'') – Black, Ø 0.41mm (0.016'') – Gray, Ø 0.51mm (0.020'') – Blue, Ø 0.64mm (0.025'') – Brown, Ø 0.76mm (0.030'') – Beige, Ø 1.02mm (0.040'') – Rust
Port Connection

B80 – Ø2.65 mm barb for Ø1.6 mm I.D. tubing, B85 – Ø4.75 mm barb for Ø3.2 mm I.D. tubing, B86 – Ø5.60 mm barb for Ø4.3 mm I.D. tubing

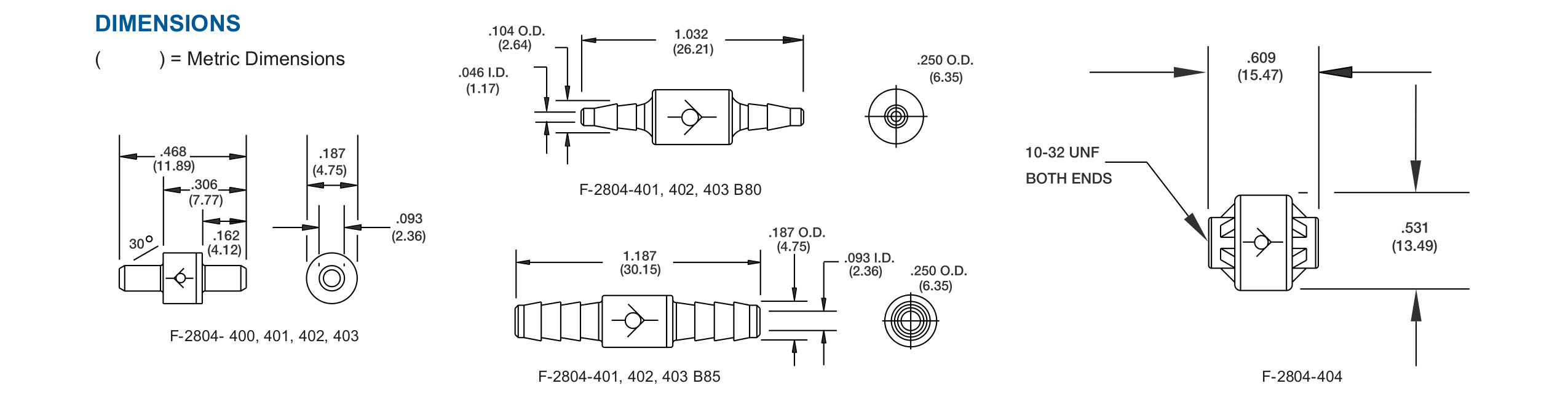

Drawings

3D-Files

Preset Flow Control – F-2804-404-XXX-XXX – STEP

Please contact us for other formats.

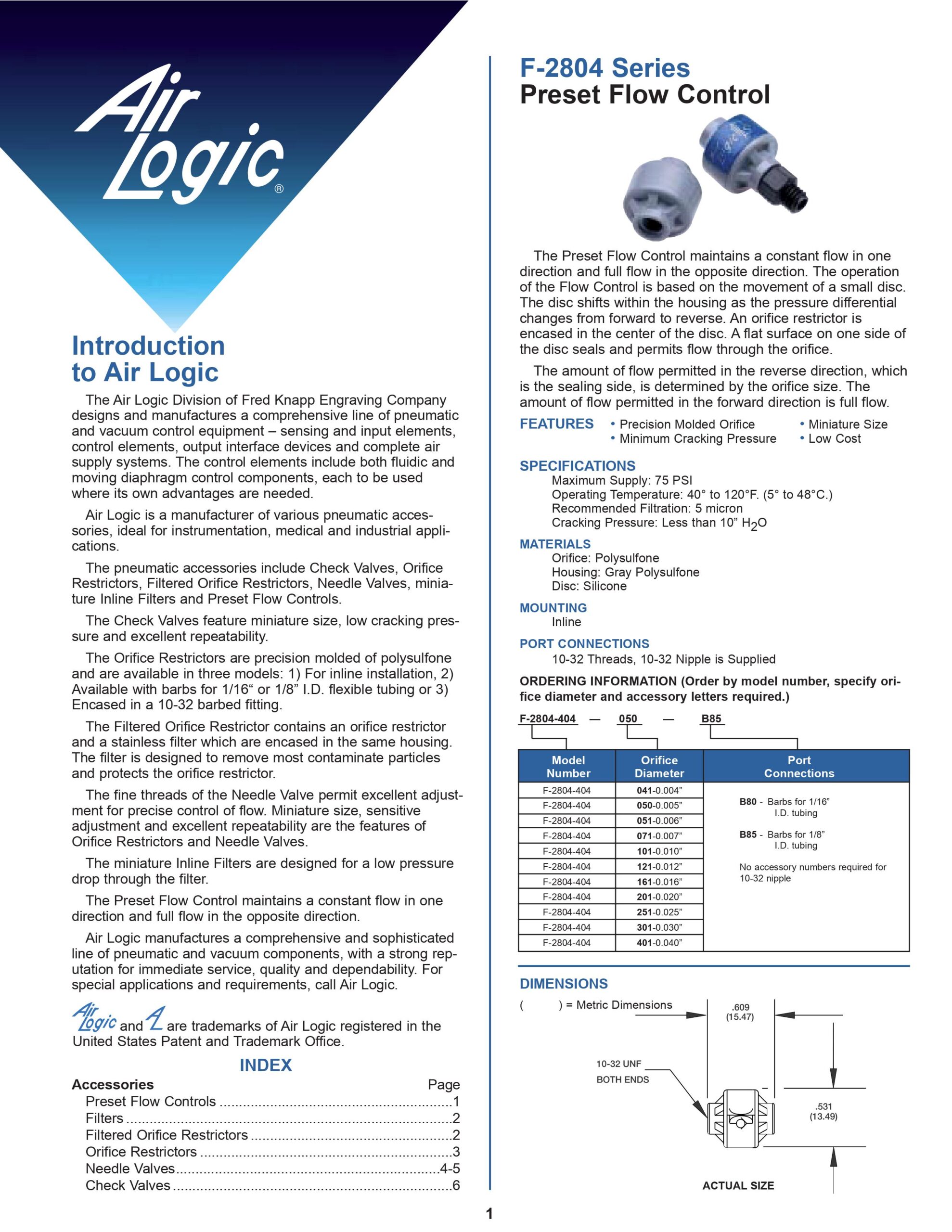

Catalogs
