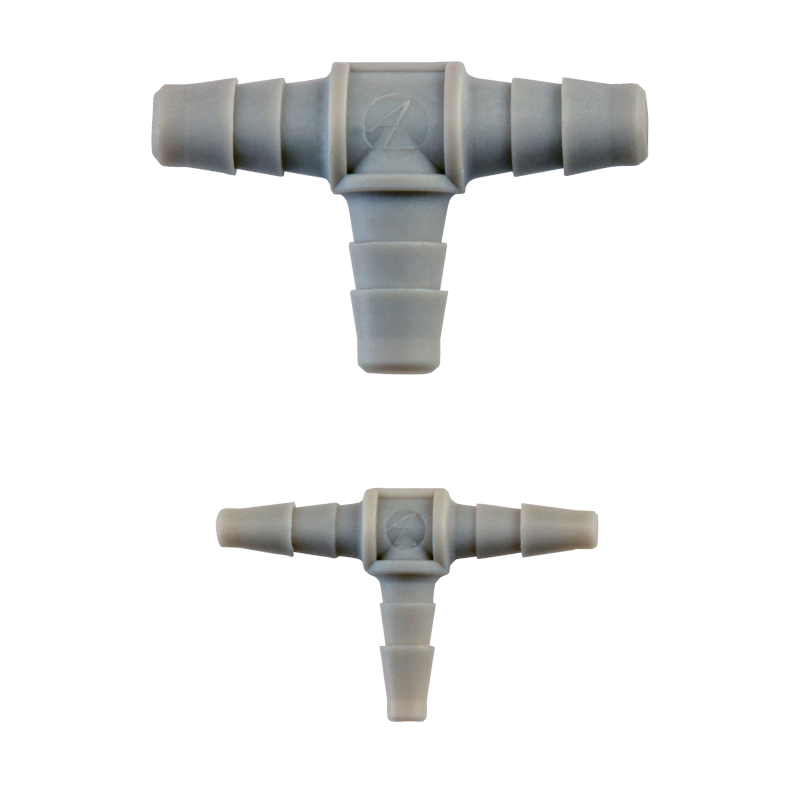

Polypropylene Barbed Tee

Polypropylene Barbed Tee

The Plastic Fittings include Bulkhead Connectors, Miniature Unions, Reducing Connectors, Barbed Fittings, Tees, Elbows, Crosses, 10-32 Plugs and Nipples, Straight Swivels, Swivel Elbows and Tees.

CHF 0.85 (excl. VAT)

Delivery time: 2 - 4 weeks
Contact us for shorter delivery times Art.-Nr.: N/A Categories: ,

The Multiple Barbed Fittings are precision molded of polypropylene.

  • Joins 1/16″ or 1/8″ flexible tubing

FEATURES

  • Miniature Size
  • Low Cost
  • Polypropylene

SPECIFICATIONS

Maximum Supply Pressure: 8.62 bar (125 PSI)
Operating Temperature: Polypropylene -38 to 93 °C (-40 to 200 °F)

MATERIAL

Polypropylene Gray

PORT CONNECTIONS

B80: Barb Ø2.65 mm (0.104″) for Ø1.6 mm (1/16″) flexible I.D. tubing
B85: Barb Ø4.75 mm (0.187″) for Ø3.2 mm (1/8″) flexible I.D. tubing

MOUNTING

Inline

Fitting Configuration

80 – Ø2.65 mm barb for Ø1.6 mm I.D. tubing, 85 – Ø4.75 mm barb for Ø3.2 mm I.D. tubing

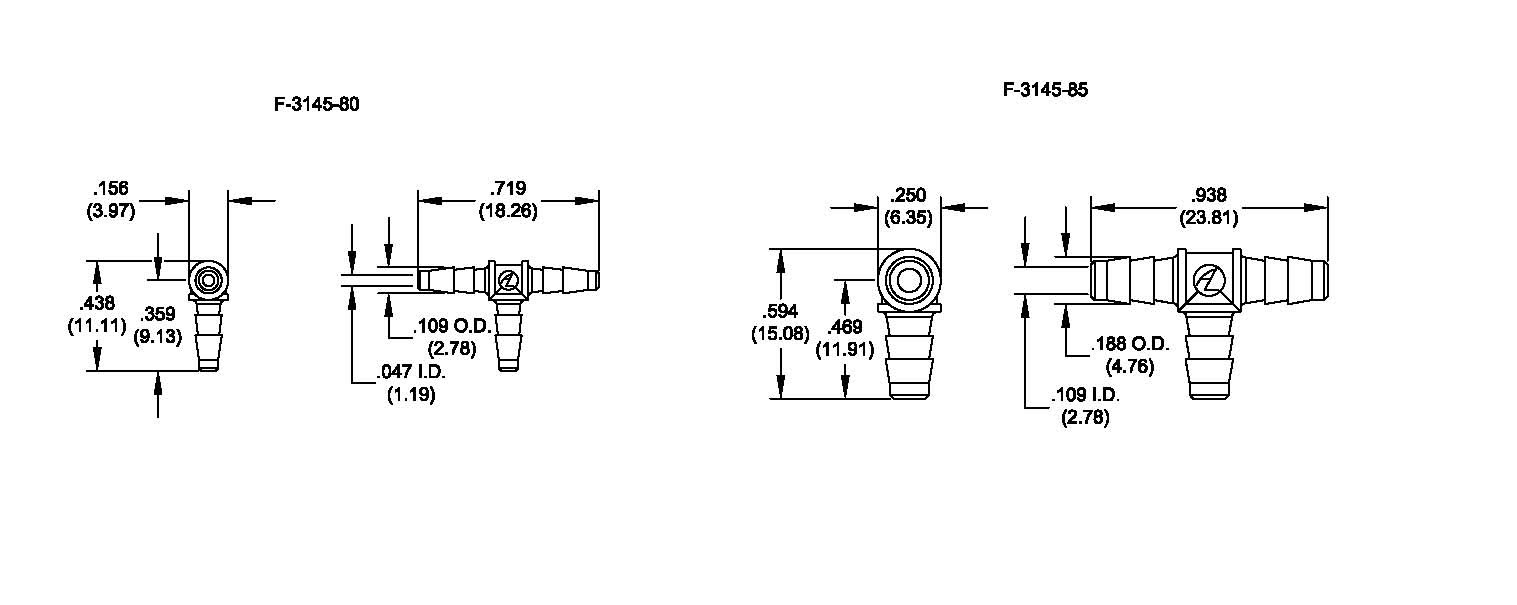

Drawings

3D-Files



Please contact us for other formats.
