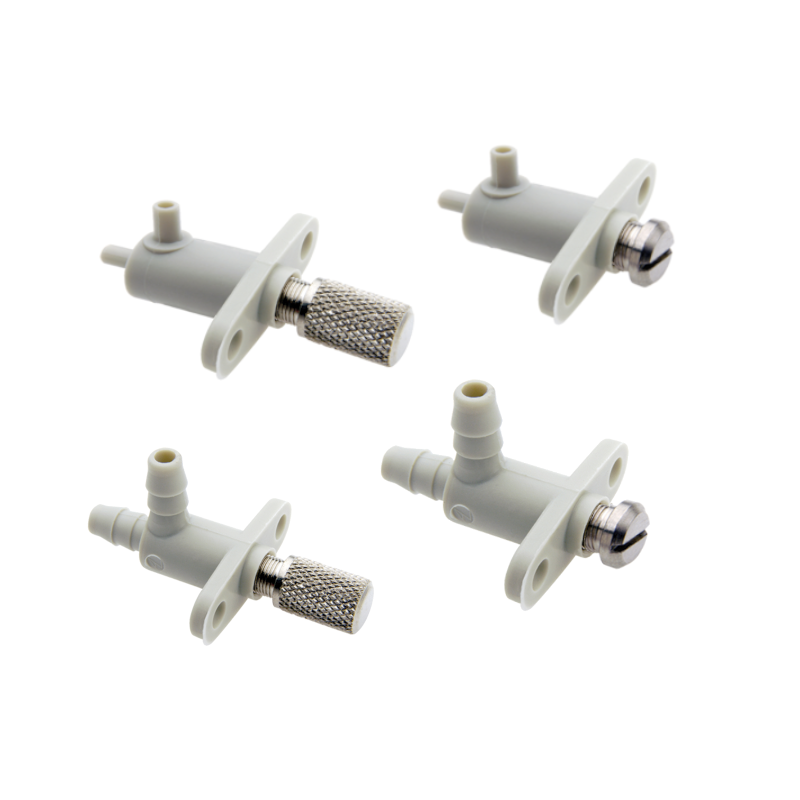

The Needle Valves are adjustable from 0 to the equivalent flow of a 0.025” diameter orifice. The flow is restricted in both directions. The Needle Valve is designed for panel mounting. The standard device is furnished with a screwdriver slot adjustment. The Needle Valves are available in Glass filled polypropylene. The standard O-ring is Buna-N; Viton or Ethylene Propylene, EPDM, can be provided.
FEATURES
- Fine Adjustment
- Miniature Size
- Plastic Housing
SPECIFICATIONS
Turns: 7 turns
Flow: Equivalent to 0.025” diameter orifice
Adjustment Screw: Screwdriver slot
Operating Temperature: 5 to 48 °C (40 to 120 °F)
Recommended Filtration: 5 micron
Pin: Nickel Plated Brass or 303 Stainless Steel
Pin Thread Size: 10-64
Pin Angle: 6 degrees
MATERIALS
O-ring: Buna-N
Vibration Insert: None
Valve Body: F-2822-51 20% Glass Filled Polypropylene
PORT CONNECTIONS

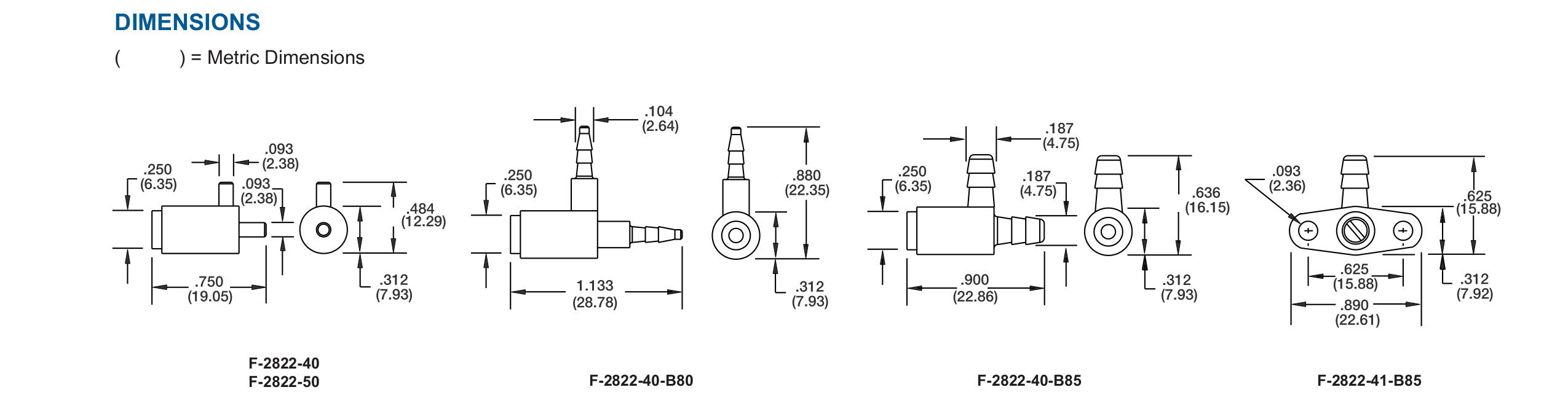

Straight ports for Ø1.6 mm (1/16″) flexible I.D. tubing
B85: Barb Ø4.75 mm (0.187″) for Ø3.2 mm (1/8″) flexible I.D. tubing
MOUNTING
Panel mounted. Furnished with two self tapping screws.
