Orifice Restrictor in a barbed fitting

Orifice Restrictor in a barbed fitting

The Air Logic Orifice Restrictors are designed for use in pneumatic control circuits. Available in eleven color coded sizes.

CHF 2.90 (excl. VAT)

Delivery time: 2 - 4 weeks
Contact us for shorter delivery times Art.-Nr.: N/A Categories: ,

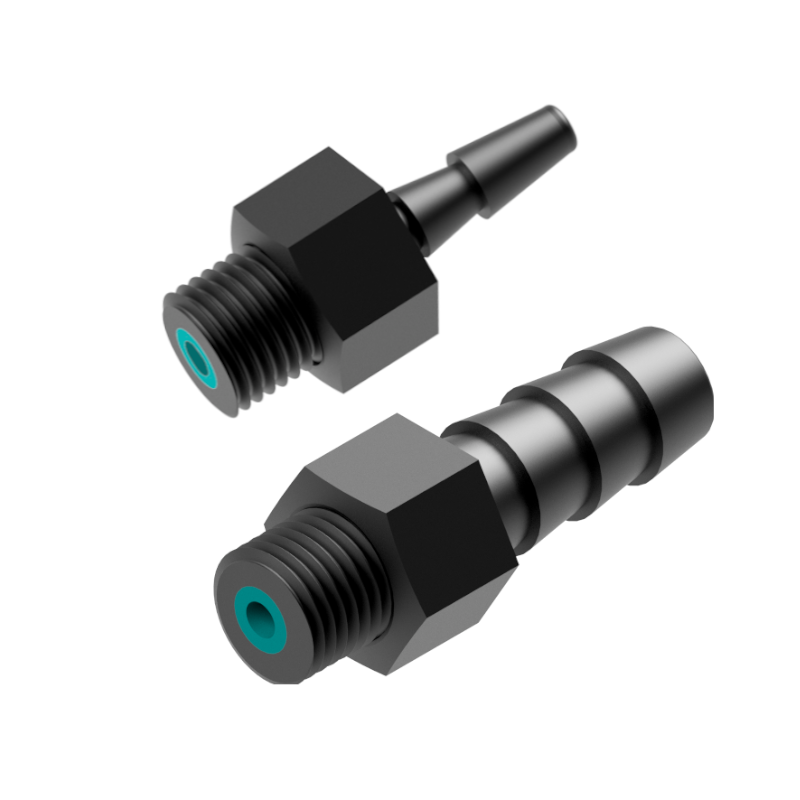

The Orifices are precision molded from polysulfone and are held to flow tolerances of ± 4%. The Orifice Restrictors are available encased in a 10-32 barbed fitting. The F-3120 Series Orifice Restrictors are encased in a molded polysulfone barbed fitting. The barbed fitting has 10-32 UNF male threads and is available with barbs for 1/16” or 1/8” I.D. flexible tubing.

FEATURES

• Precision Molded
• Miniature size
• Low Cost

SPECIFICATIONS

Orifice Diameter: 0.10mm to 1.02mm (0.004″ to 0.040″)
Maximum Supply: 6.89 bar (100 PSI)
Operating Temperatures: 5° to 48 °C (40° to 120 °F)
Recommended Filtration: 5 micron
Flow Tolerances: ±4%

MATERIALS

Housing: Polysulfone

PORT CONNECTIONS

B80: Barb Ø2.65 mm (0.104″) for Ø1.6 mm (1/16″) flexible I.D. tubing
B85: Barb Ø4.75 mm (0.187″) for Ø3.2 mm (1/8″) flexible I.D. tubing

MOUNTING

10-32 UNF male threads

Orifice Diameter

Ø 0.10 mm (0.004”) – Purple, Ø 0.13mm (0.005”) – Lime Green, Ø 0.15mm (0.006”) – Red, Ø 0.18mm (0.007'') – Aqua Green, Ø 0.25mm (0.010'') – Yellow, Ø 0.30mm (0.012'') – Black, Ø 0.41mm (0.016'') – Gray, Ø 0.51mm (0.020'') – Blue, Ø 0.64mm (0.025'') – Brown, Ø 0.76mm (0.030'') – Beige, Ø 1.02mm (0.040'') – Rust
Port Connection

B80 – Ø2.65 mm barb for Ø1.6 mm I.D. tubing, B85 – Ø4.75 mm barb for Ø3.2 mm I.D. tubing

Drawings

3D-Files

Orifice Restrictors – F-3120-XXX-XXX – STEP

Please contact us for other formats.
