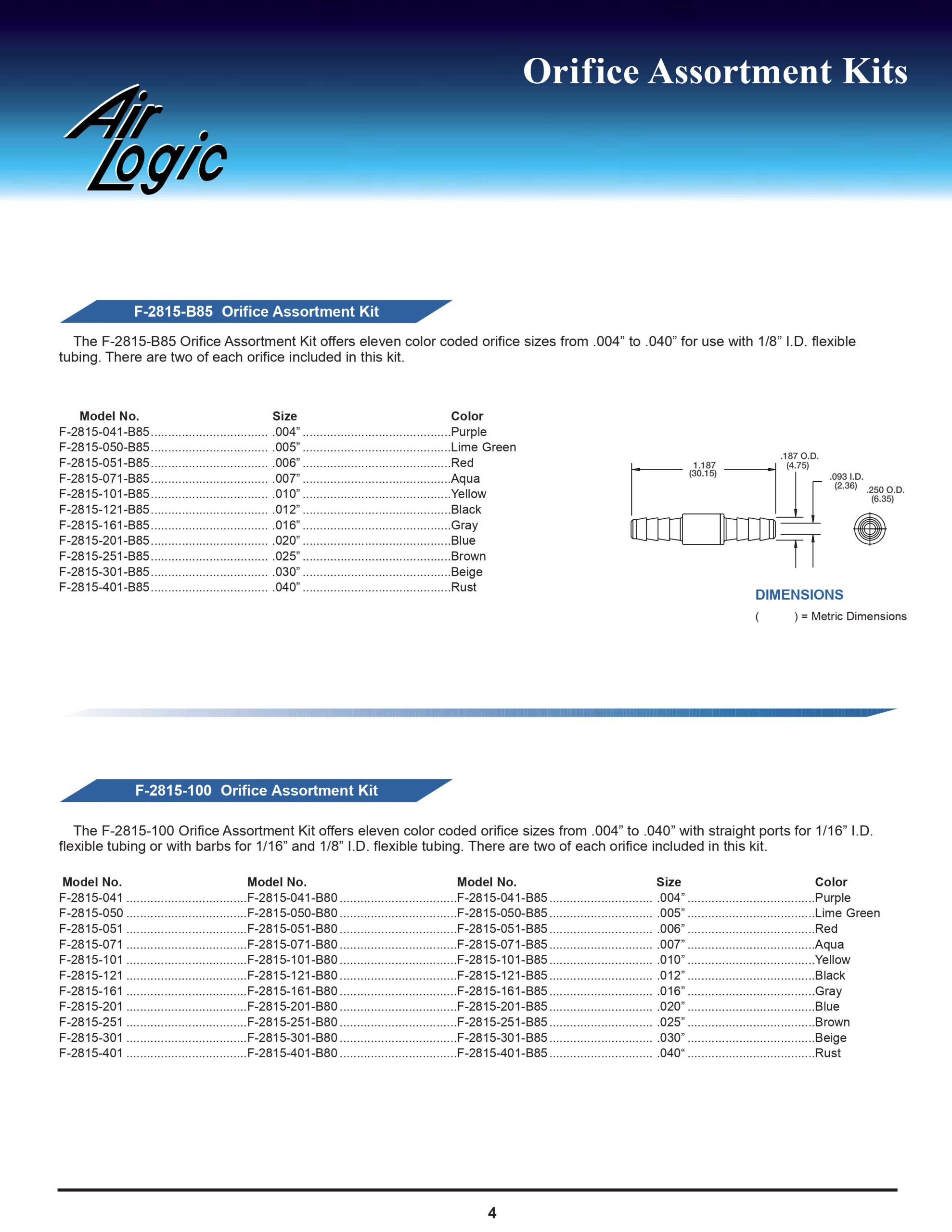

There are two of each orifice included in this kit.
FEATURES
- Eleven color coded orifice sizes
- Sizes range from 0.004″ to 0.040″
- Straight ports for 1/16″ I.D. flexible tubing
- Barbs for 1/16″ and 1/8″ I.D. flexible tubing
SPECIFICATIONS
| Model No. | Model No. | Model No. | Size | Color |
|---|---|---|---|---|
| F-2815-041 | F-2815-041-B80 | F-2815-041-B85 | 0.10 mm (0.004″) | Purple |
| F-2815-050 | F-2815-050-B80 | F-2815-050-B85 | 0.13 mm (0.005″) | Lime Green |
| F-2815-051 | F-2815-051-B80 | F-2815-051-B85 | 0.15 mm (0.006″) | Red |
| F-2815-071 | F-2815-071-B80 | F-2815-071-B85 | 0.18 mm (0.007″) | Aqua |
| F-2815-101 | F-2815-101-B80 | F-2815-101-B85 | 0.25 mm (0.010″) | Yellow |
| F-2815-121 | F-2815-121-B80 | F-2815-121-B85 | 0.30 mm (0.012″) | Black |
| F-2815-161 | F-2815-161-B80 | F-2815-161-B85 | 0.41 mm (0.016″) | Gray |
| F-2815-201 | F-2815-201-B80 | F-2815-201-B85 | 0.51 mm (0.020″) | Blue |
| F-2815-251 | F-2815-251-B80 | F-2815-251-B85 | 0.64 mm (0.025″) | Brown |
| F-2815-301 | F-2815-301-B80 | F-2815-301-B85 | 0.76 mm (0.030″) | Beige |
| F-2815-401 | F-2815-401-B80 | F-2815-401-B85 | 1.02 mm (0.040″) | Rust |
MATERIALS
Housing: Polysulfone
PORT CONNECTIONS
Straight ports for Ø1.6 mm (1/16″) flexible I.D. tubing
B80: Barb Ø2.65 mm (0.104″) for Ø1.6 mm (1/16″) flexible I.D. tubing
B85: Barb Ø4.75 mm (0.187″) for Ø3.2 mm (1/8″) flexible I.D. tubing
MOUNTING
Inline installation
