Universal Swivel Bulkhead Starter Kit

Universal Swivel Bulkhead Starter Kit

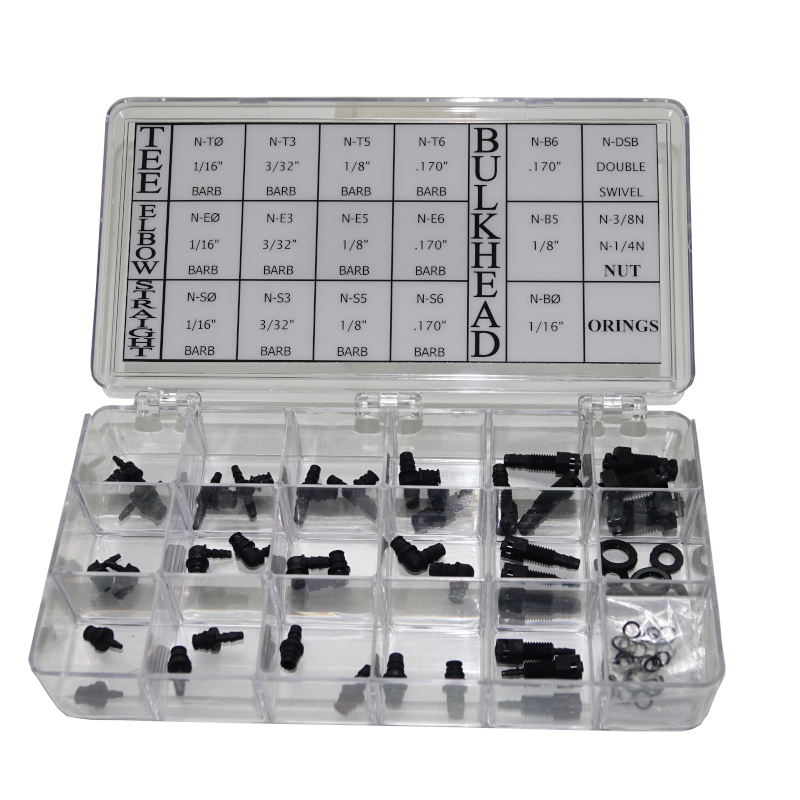

The unique design of the modular bulkhead base allows the swivel fitting to rotate 360°, independent of the bulkhead base, and allows you to design the fitting specifically for your application.

CHF 91.85 (excl. VAT)

Delivery time: 2 - 4 weeks
Contact us for shorter delivery times Art.-Nr.: N/A Categories: ,

The barb size and the swivel barb configuration are both customizable options. Barb configurations are available on Straight, Tee and Elbow Swivel. Assembly is easy; all it takes is a SNAP! No glue or solvents are required to connect the bulkhead base to the swivel barb port using our simple, snap-together construction.

SPECIFICATIONS

N-USB-Kit-*
Model No. Description Qty
N-B0 Bulkhead for Ø1.6 mm (1/16″) I.D. tubing (nylon) 3
N-B5 Bulkhead for Ø3.2 mm (1/8″) I.D. tubing (nylon) 3
N-B6 Bulkhead for Ø4.3 mm (0.170″) I.D. tubing (nylon) 3
N-DSB Double Swivel Bulkhead Base (nylon) 3
N-S0 Straight Swivel Barb for Ø1.6 mm (1/16″) I.D. Tubing 2
N-S3 Straight Swivel Barb for Ø2.4mm (3/32″) I.D. Tubing 2
N-S5 Straight Swivel Barb for Ø3.2 mm (1/8″) I.D. Tubing 2
N-S6 Straight Swivel Barb for Ø4.3 mm (0.170″) I.D. Tubing 2
N-E0 Swivel Elbow Barb for Ø1.6 mm (1/16″) I.D. Tubing 2
N-E3 Swivel Elbow Barb for Ø2.4mm (3/32″) I.D. Tubing 2
N-E5 Swivel Elbow Barb for Ø3.2 mm (1/8″) I.D. Tubing 2
N-E6 Swivel Elbow Barb for Ø4.3 mm (0.170″) I.D. Tubing 2
N-T0 Swivel Tee Barb for Ø1.6 mm (1/16″) I.D. Tubing 2
N-T3 Swivel Tee Barb for Ø2.4mm (3/32″) I.D. Tubing 2
N-T5 Swivel Tee Barb for Ø3.2 mm (1/8″) I.D. Tubing 2
N-T6 Swivel Tee Barb for Ø4.3 mm (0.170″) I.D. Tubing 2
N-1/4N 1/4-28 UNF Threaded Nut 9
N-3/8N 3/8-24 UNF Threaded Nut 3
Bag of 25 O-Rings with lubricant 1
*Specify Desired O-Ring Material
Example: N-USB-Kit-B
B: Buna-N EP: Ethylene Propylene S: Silicone V: Viton

MATERIALS

Housing Material: Nylon black
O-ring Material: Buna-N, Ethylene Propylene, Silicone, and Viton

PORT CONNECTIONS

B80: Barb Ø2.65 mm (0.104″) for Ø1.6 mm (1/16″) flexible I.D. tubing
B83: Barb Ø3.63mm (0.143″) for Ø2.4mm (3/32″) flexible I.D. tubing
B85: Barb Ø4.75 mm (0.187″) for Ø3.2 mm (1/8″) flexible I.D. tubing
B86: Barb Ø5.60 mm (0.220″) for Ø4.3 mm (0.170″) flexible I.D. tubing



Accessories

Buna-N o-ring, E- Ethylene Propylene o-ring, S – Silicone, V- Viton o-ring
