Inline Filter with Barbs (B80/B85)

Inline Filter with Barbs (B80/B85)

F-950 Series inline Filters with stainless steel filter material. These filters are low-cost and disposable.

CHF 4.10 (excl. VAT)

Delivery time: 2 - 4 weeks
Contact us for shorter delivery times Art.-Nr.: N/A Categories: ,

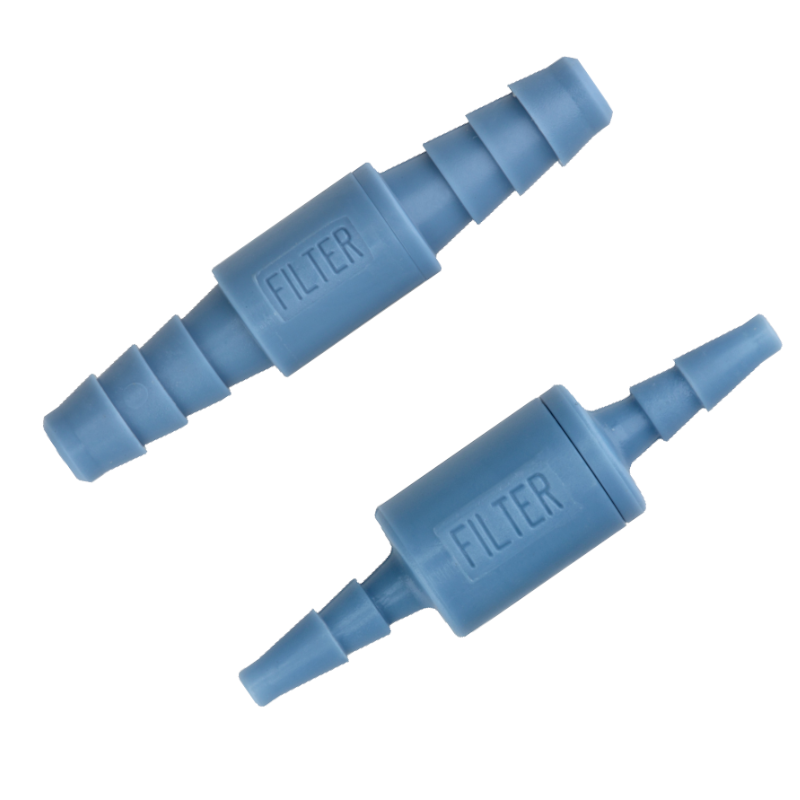

This disposable miniature inline filter is designed to remove most contaminate particles in compressed air systems. It has barbs for 1/16″ or 1/8″ I.D. tubing. The filters are precision molded of polysulfone material. The Dutch Weave wire screen is constructed of stainless steel and resistant to high pressure. The filters are available in 5, 25, 43 and 73 microns. Maximum supply is 125 PSI.

FEATURES

  • Low Cost
  • Disposable
  • Small Size
  • Low Pressure Drop

SPECIFICATIONS

Maximum Supply: 8.62 bar (125 PSI)
Operating Temperature: 5 to 48 °C (40 to 120 °F)

MATERIALS

Housing: Blue Polysulfone
Filter Media: 316 stainless steel filter screen

PORT CONNECTIONS

B80: Barb Ø2.65 mm (0.104″) for Ø1.6 mm (1/16″) flexible I.D. tubing
B85: Barb Ø4.75 mm (0.187″) for Ø3.2 mm (1/8″) flexible I.D. tubing

MOUNTING

Inline installation

Filter Size

5 µm, 25 µm, 43 µm, 73 µm
Port Connection

B80 – Ø2.65 mm barb for Ø1.6 mm I.D. tubing, B85 – Ø4.75 mm barb for Ø3.2 mm I.D. tubing

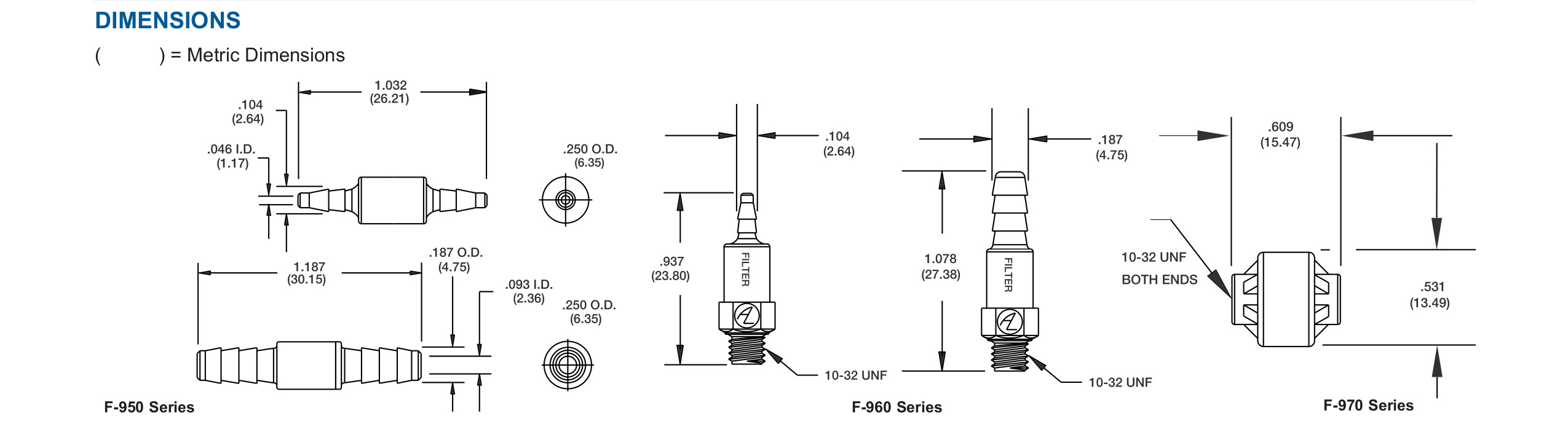

Drawings

3D-Files

Filters – F-9XX-XX-XXX – STEP

Please contact us for other formats.

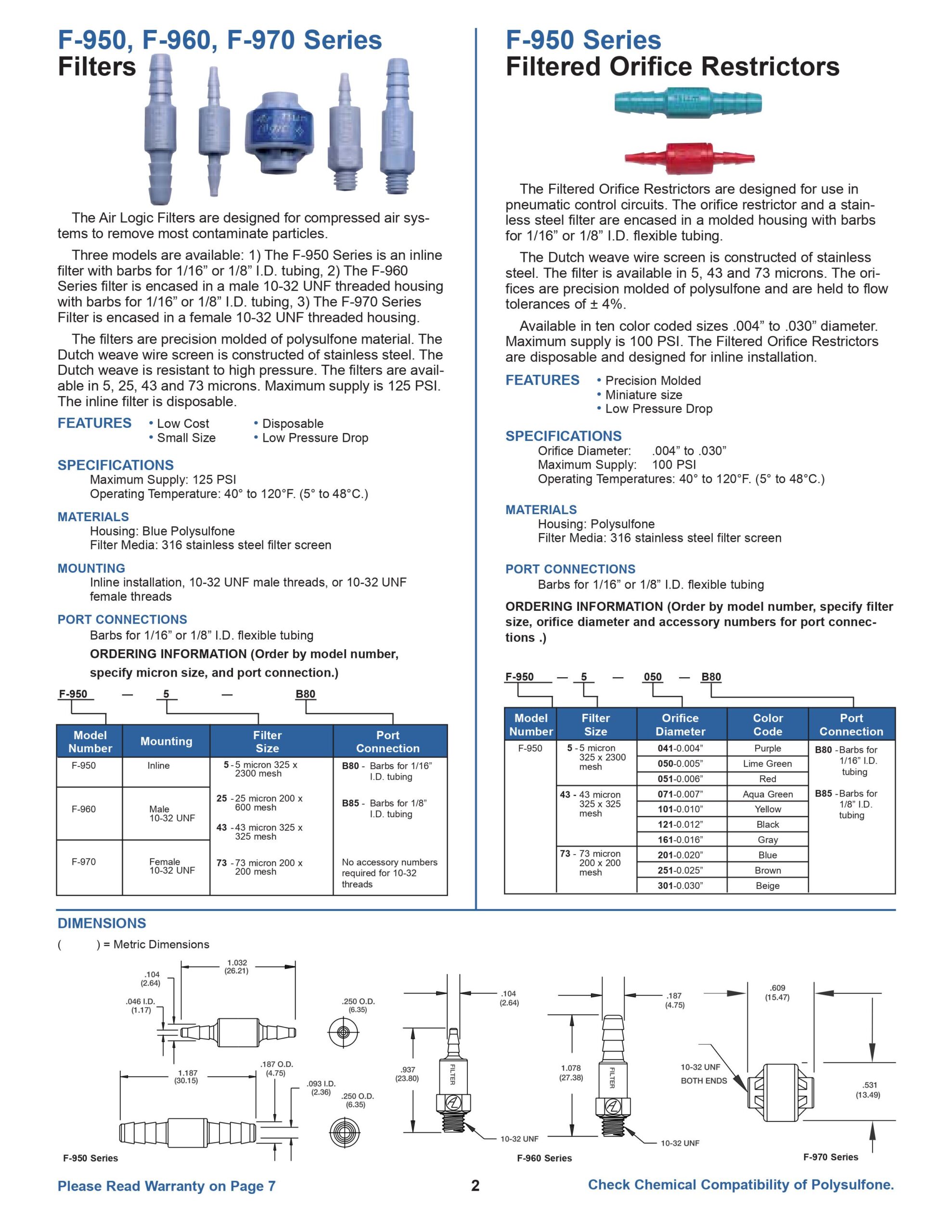

Catalogs
