Relief Valves (0-10 PSI)

The Valve is designed for precise control in pneumatic control circuits.

CHF 15.50 (excl. VAT)

Delivery time: 2 - 4 weeks
Contact us for shorter delivery times Art.-Nr.: N/A Categories: ,

It can be used as a relay valve to sequence-specific signal operations or as a relief valve to limit pressure in a pneumatic system.
Fixed or adjustable pressure settings are available; the pressure range is 0-20 PSI. To adjust the valve, turn the adjusting screw clockwise to reach zero adjustments. Then turn the adjusting screw counterclockwise to the desired relieving or sequencing pressure.

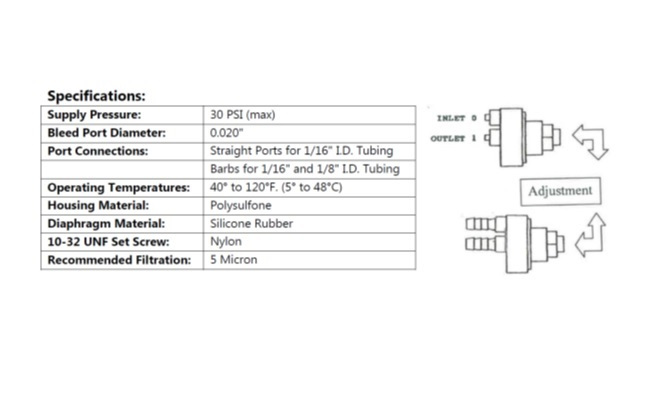

SPECIFICATIONS

Supply Pressure: 2.07 bar (30 PSI) max
Bleed Port Diameter: 0.51 mm (0.020″)
Operating Temperature: 5 to 48 °C (40 to 120 °F)
Recommended Filtration: 5 micron

MATERIALS

Housing: Polysulfone
Diaphragm: Silicone Rubber
10-32 UNF Set Screw: Nylon

PORT CONNECTIONS

Straight ports for Ø1.6 mm (1/16″) flexible I.D. tubing
B80: Barb Ø2.65 mm (0.104″) for Ø1.6 mm (1/16″) flexible I.D. tubing
B85: Barb Ø4.75 mm (0.187″) for Ø3.2 mm (1/8″) flexible I.D. tubing

Port Connection

B80 – Ø2.65 mm barb for Ø1.6 mm I.D. tubing, B85 – Ø4.75 mm barb for Ø3.2 mm I.D. tubing, Ø 1.6mm Straight ports
